Distribution Box / Enclosure
HC-Water Proof Distribution Box IP65 Plastic
Key information
HC type Water Proof Distribution Box
Rated voltage / rated frequency: 690V/50Hz
Material: Cover - PC
Body - ABS
Color: RAL 7035
Tested and approved to IEC/EN 60947-1
CE certificated
Din rail connection according to IEC/EN 50022

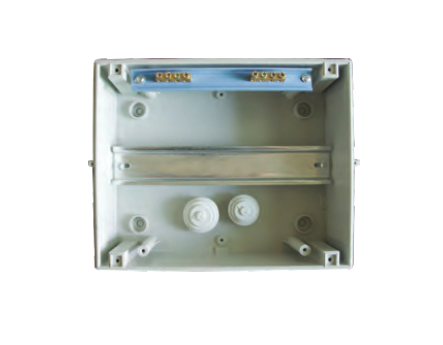

Supplied with removable earth / neutral bar
Dimension
Type | Length (mm) | Width (mm) | Height (mm) |

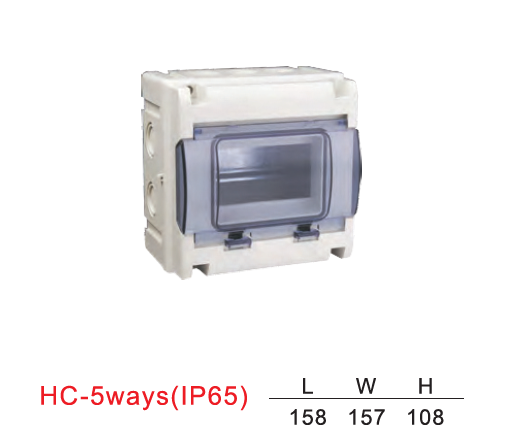

HC-5ways | 158 | 157 | 108 |
HC-8ways | 210 | 174 | 108 |

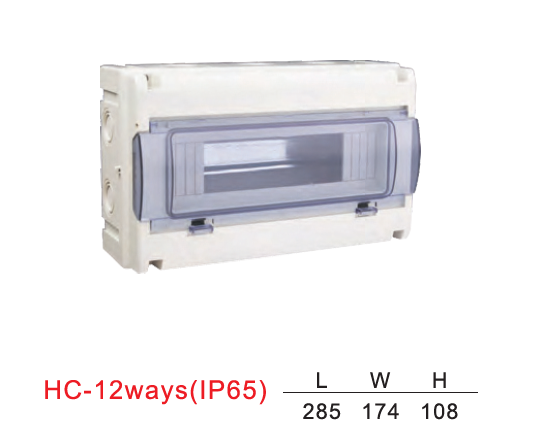

HC-12ways | 285 | 174 | 108 |
HC-18ways | 285 | 350 | 108 |
