Distribution Box / Enclosure
HK-Water Proof Distribution Box IP55 Plastic
Key information
HK type Water Proof Distribution Box IP55
Rated voltage / rated frequency: 690V/50Hz
Material: Cover - PC
Body - ABS
Color: RAL 7035
Tested and approved to IEC/EN 60947-1
CE certificated

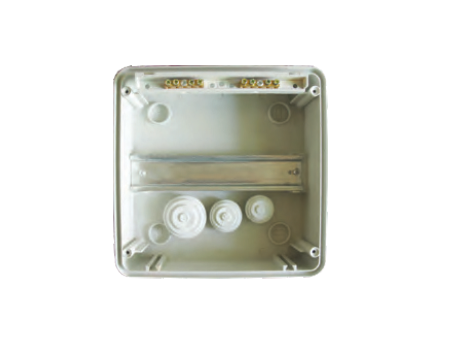

Din rail connection according to IEC/EN 50022
Supplied with removable earth / neutral bar
Dimension
Type | Length (mm) | Width (mm) | Height (mm) |

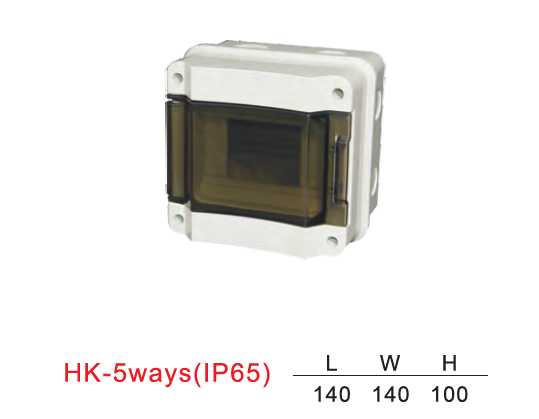

HK-5ways | 140 | 140 | 100 |

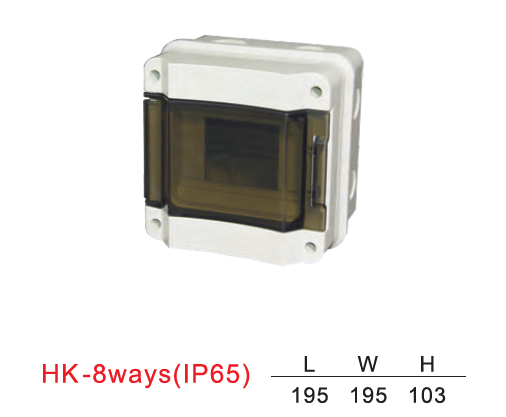

HK-8ways | 195 | 195 | 103 |

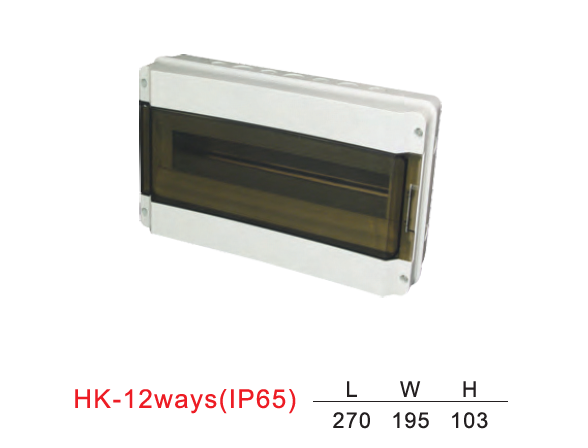

HK-12ways | 270 | 195 | 103 |

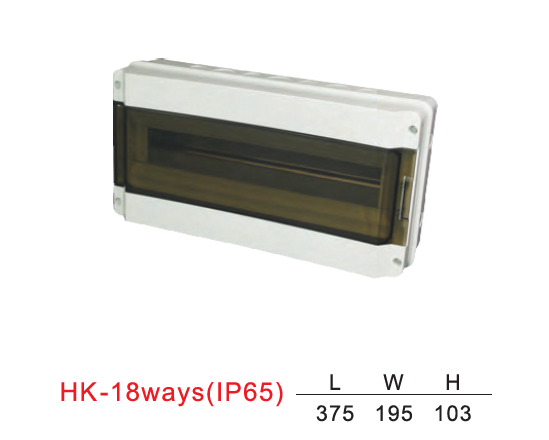

HK-18ways | 375 | 195 | 103 |
