DIN Rail Mini Circuit Breaker

  • MCB WSB7-63
  • MCB WSB7-63
  • MCB WSB7-63
  • MCB WSB7-63
  • MCB WSB7-63
  • MCB WSB7-63
  • MCB WSB7-63
MCB WSB7-63 MCB WSB7-63 MCB WSB7-63 MCB WSB7-63 MCB WSB7-63 MCB WSB7-63 MCB WSB7-63

MCB WSB7-63

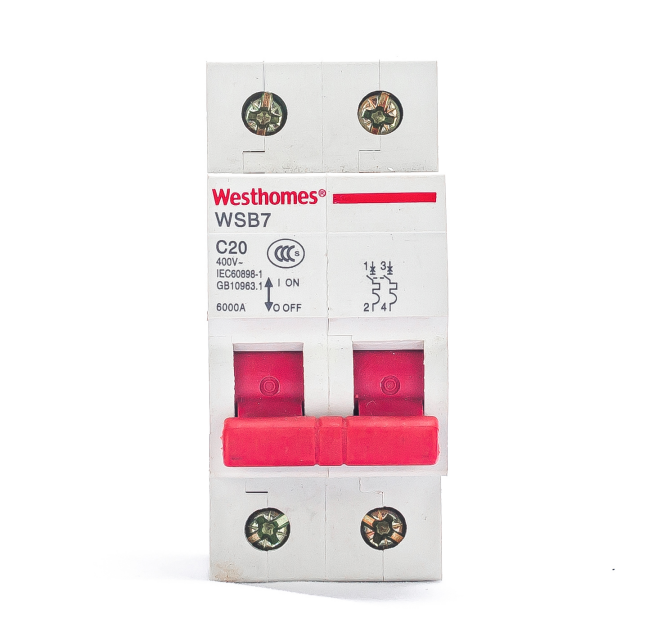

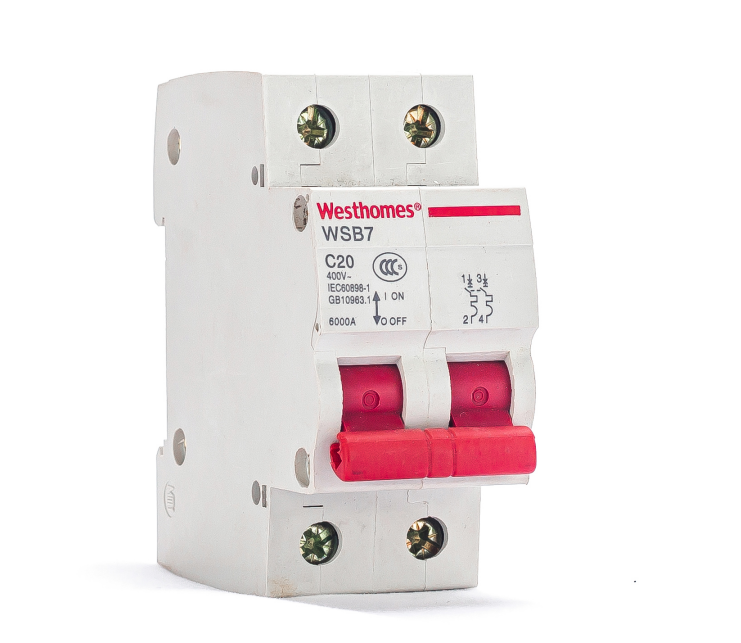

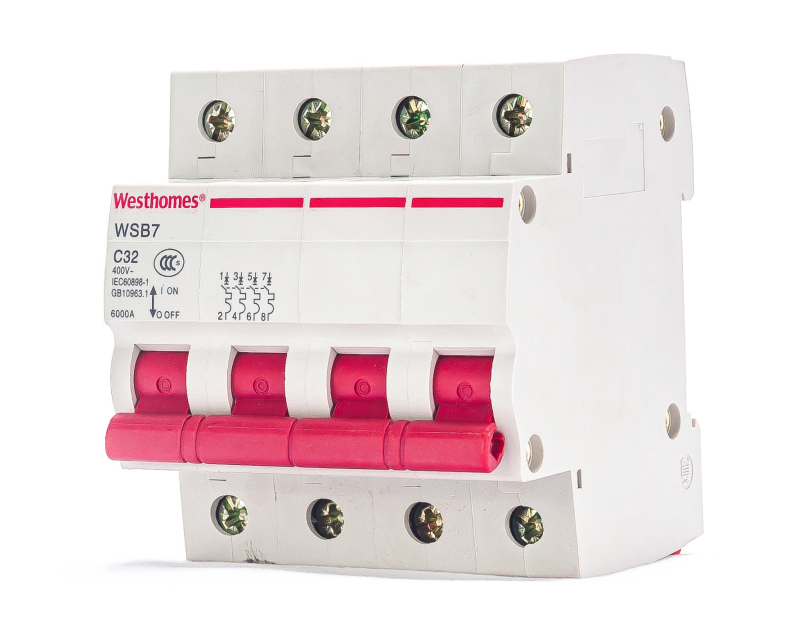

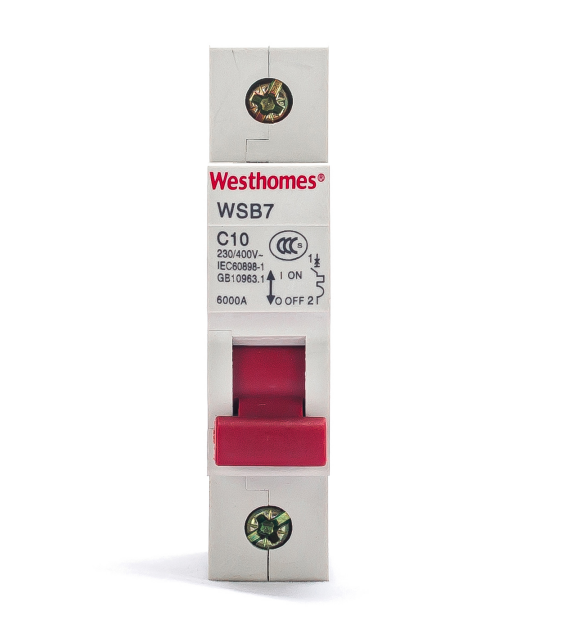

  • Product ID: Miniature Circuit Breaker WSB7-63
  • size: 6kA, 4.5kA, 18mm, 63A
  • INQUIRY

Key Information

WSB7-63

Pole: 1P, 2P, 3P, 4P

Voltage: AC230V/400V

kA: 4.5kA, 6kA

Amps: 6, 10, 16, 20, 25, 32,40, 50, 63

Width: 18, 36, 54, 72mm

General

WSB7-63 series high breaking miniature circuit breaker is applied in line of AC 50/60Hz, rated voltage 230/400V and rated current upto 63A for overload and short circuit protection, also for usage of infrequent operation switching of line under nomal circumstance. It is used at places of industrial, commercial, high-rise and residula buildings, meets standards IEC/EN60898-1 and GB10963.1.

Main technical parameters

Current rating (A)6, 10, 16, 20, 25, 32, 40, 50, 63
Type of instantaneous tripperType B (3-5)In; Type C (5-10)In; Type D (10-20)In
Pole (P)1P, 2P, 3P, 4P
Rated short circuit breaking capacityCurrent rating (A)1-63A
Pole (P)1P, 2P3P, 4P
Rated voltage (V)230 / 400400
Rated short circuit breaking current (A)6000 (6-40A); 4500 (50-63A)
Power factor COSΦ0.7
Mechanical electrical lifeCurrent rating (A)1-32A40-63A
Electrical life (times)4000
Mechanical life (times)20000
Operation frequency (times / hour)240120
