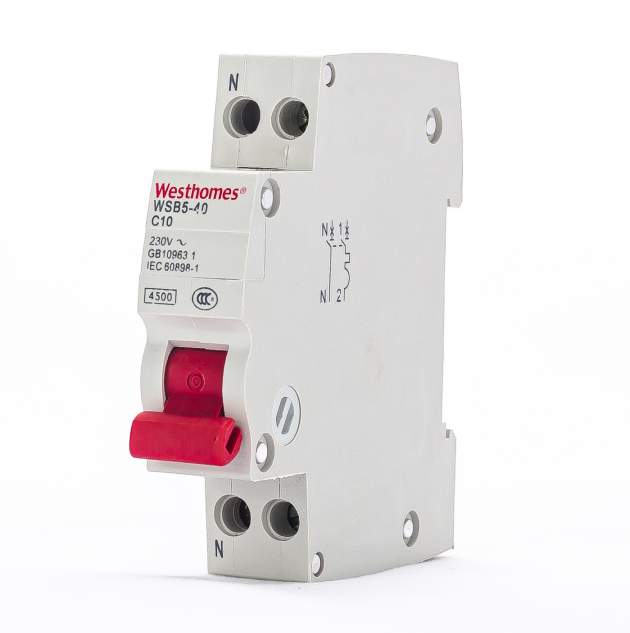

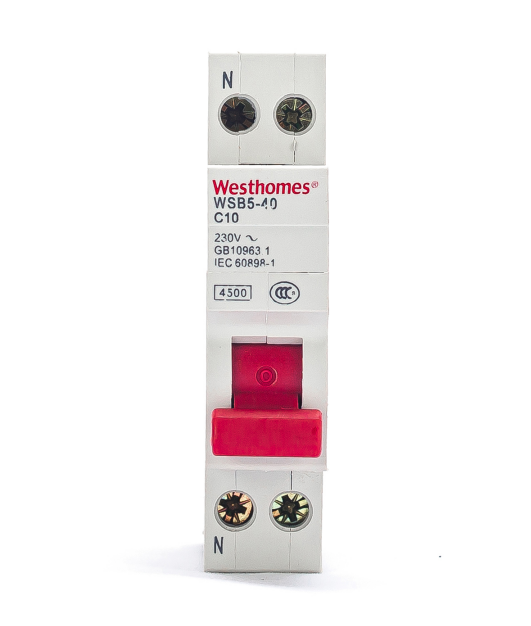

DIN Rail Mini Circuit Breaker
MCB (Phase+ Nuetral) WSB5-40
- Product ID： Miniature Circuit Breaker WSB5-40
- size： 2P 18mm
- INQUIRY
Key Information
WSB5-40
Pole: 2P
Voltage: AC230V
kA: 4.5kA
Amps: 6, 10, 16, 20, 25, 32,40

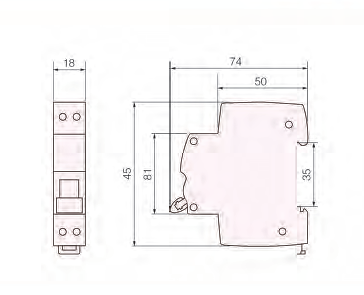

Width: 18mm
General
WSB5-40 series "phase line+neutral line" circuit breaker is applied in single phase residential line of AC50Hz or 60Hz, rated voltage AC230V to make overload and short circuit protection to the electrical circuit. The product is big in breaking capacity and small in volume with width 18mm. It is null line and live line break at same time which put personal harm and fire risk an end that may be caused by reverse connecting of null line or potential of null line earthing. It is the optimal distribution protecting switch for residual houses at present. It meets standards IEC60898-1 and GB10963.1.
Main technical parameters
| Model | Rated voltage (V) | Pole (P) | Frame current rating (A) | Current rating (A) | Rated short circuit breaking capacity | Mechanical life (times) | |
| Expected current test line (A) | Power factor (cosΦ) | ||||||
| WSB5-40 | 230V | 1P+N | 40 | 6, 10, 16, 20, 25, 32, 40 | 4500 | 0.85~0.09 | 20000 |
Notes: 1. Anti-wetting type: class 2, humidity 95% when temperature 55oC
