Distribution Box / Enclosure
TSM-F-W IP40 White Cover Flush Plastic DB Enclosure
Key information
Rated voltage / rated frequency: 690V/50Hz
Material: Cover - PC
Body - ABS
Color: White
Tested and approved to IEC/EN 60947-1
CE certificated
Din rail connection according to IEC/EN 50022
Supplied with removable earth / neutral bar
Technical Specification

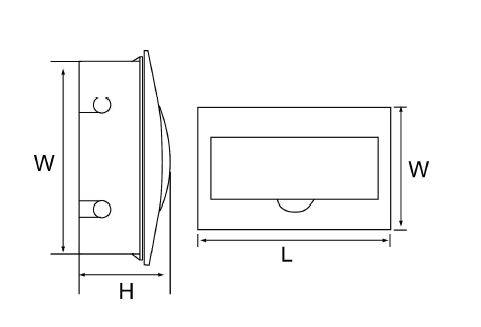

Specification | Dimension (L×W×H) |

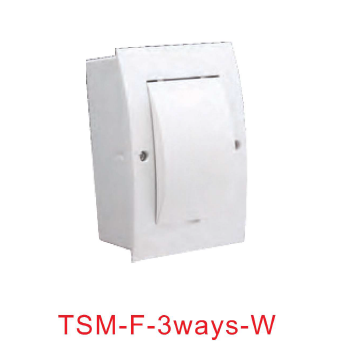

TSM-F-W-3ways | 95×150×60 |
TSM-F-W-4ways | 136×221×90 |
TSM-F-W-6ways | 172×221×90 |

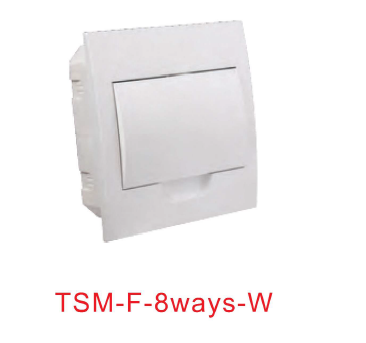

TSM-F-W-8ways | 208×221×90 |
TSM-F-W-10ways | 246×221×90 |

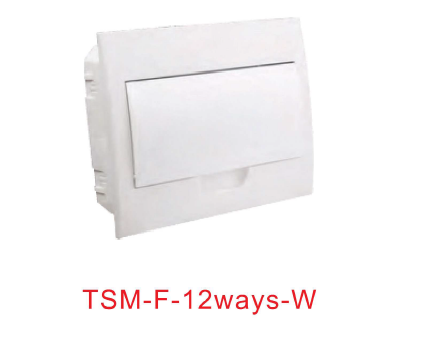

TSM-F-W-12ways | 278×221×90 |
TSM-F-W-15ways | 334×221×90 |
TSM-F-W-18ways | 398×251×100 |

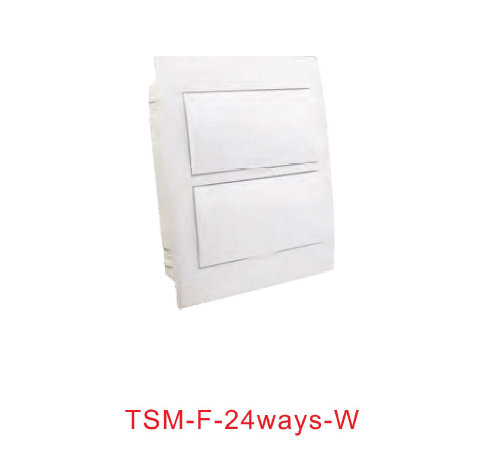

TSM-F-W-24ways | 300×350×100 |

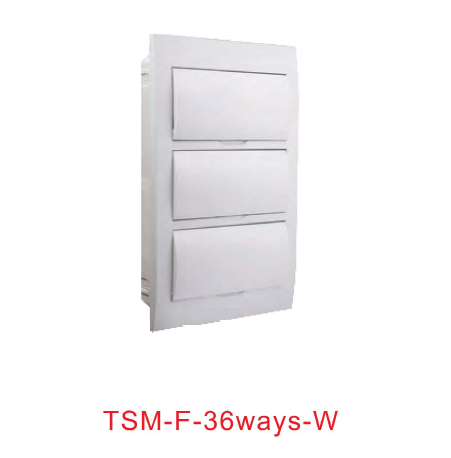

TSM-F-W-36ways | 300×482×100 |

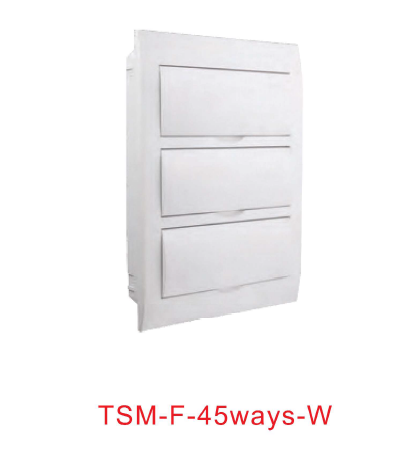

TSM-F-W-45ways | 365×505×110 |
